Introduction
Smart Window Camera
User Manual
CAM-S3W is a home security camera designed for window-mounted installation, allowing you to monitor outdoor areas from indoors without running cables outside. Equipped with 2K high-definition video and full-color night vision, it delivers clear and detailed images day and night. With AI Human Detection, the camera accurately detects people, sends instant alerts, and works with other smart devices to provide around-the-clock protection for your home.
3MP HD Clarity
Vivid Color Night Vision
Adjustable Angle
AI Human & Motion
Detection
Anti-Glare Imaging
Local Web Console
2.4G/5G Wi-Fi
Easy Installation
on Glass
|
① Microphone |
② Speaker |
|
③ LED indicator |
④ Power input interface (USB-C) |
|
⑤ TF card slot |
⑥ Reset button • Press and hold the button for 5 seconds (device emits a “beep” sound): The device enters pairing mode (pairing duration: 30 minutes). |
Power On
After powering on, the device will enter pairing mode by default during first use. The Wi-Fi LED indicator flashes two short and one long.
If pairing is not completed within 10 minutes, the device exits pairing mode. To re-enter pairing mode, press and hold the device button for 5 seconds until the Wi-Fi LED indicator flashes in a two-short, one-long pattern.Instruction of LED Indicator Status
|
LED indicator status |
Status instruction |
|
Flashes two short and one long |
Device is in pairing mode (Single press reset button to exit pairing mode). |
|
Keeps on |
Online |
|
Keeps off |
Sleep mode |
|
Flashes once, then stays on briefly |
Device exits the network configuration state after being offline, network exception, or failure to connect to the network. |
|
Flashes twice rapidly |
Device detects TF card (device will emit two “beep” sounds). |
|
Flashes once rapidly |
Device being watched |
Compatible Voice Assistants
Specification
CAM GlassView
Product Series
CAM Series
Product Type Smart
Window Camera
Product Model
CAM‑S3W
Input
5V ⎓ 1A
Interface Type
USB‑C
Lens Aperture
F1.0
Resolution
2K
Field of View
100°
Storage Methods
TF card (up to 128GB)
Wireless Connection
Wi‑Fi IEEE 802.11 a/b/g/n 2.4GHz & 5GHz
Net Weight
61.9g (Accessories not included)
Product Dimension
56mm×56mm×38mm
Colour
White
Casing Materials
ABS+PC
Applicable Place
Indoor
Working Temperature
‑10℃~40℃
Working Humidity
5%~95% RH, non‑condensing
Certification
CE/FCC/RoHS
FCC ID
2APN5‑CAMS3W
Download the“eWeLink”App
Please download the “eWeLink” App from Google Play Store or Apple App Store.
Installation
1. Thoroughly clean both sides of the glass in the installation area.
2. Choose a suitable bracket.
|

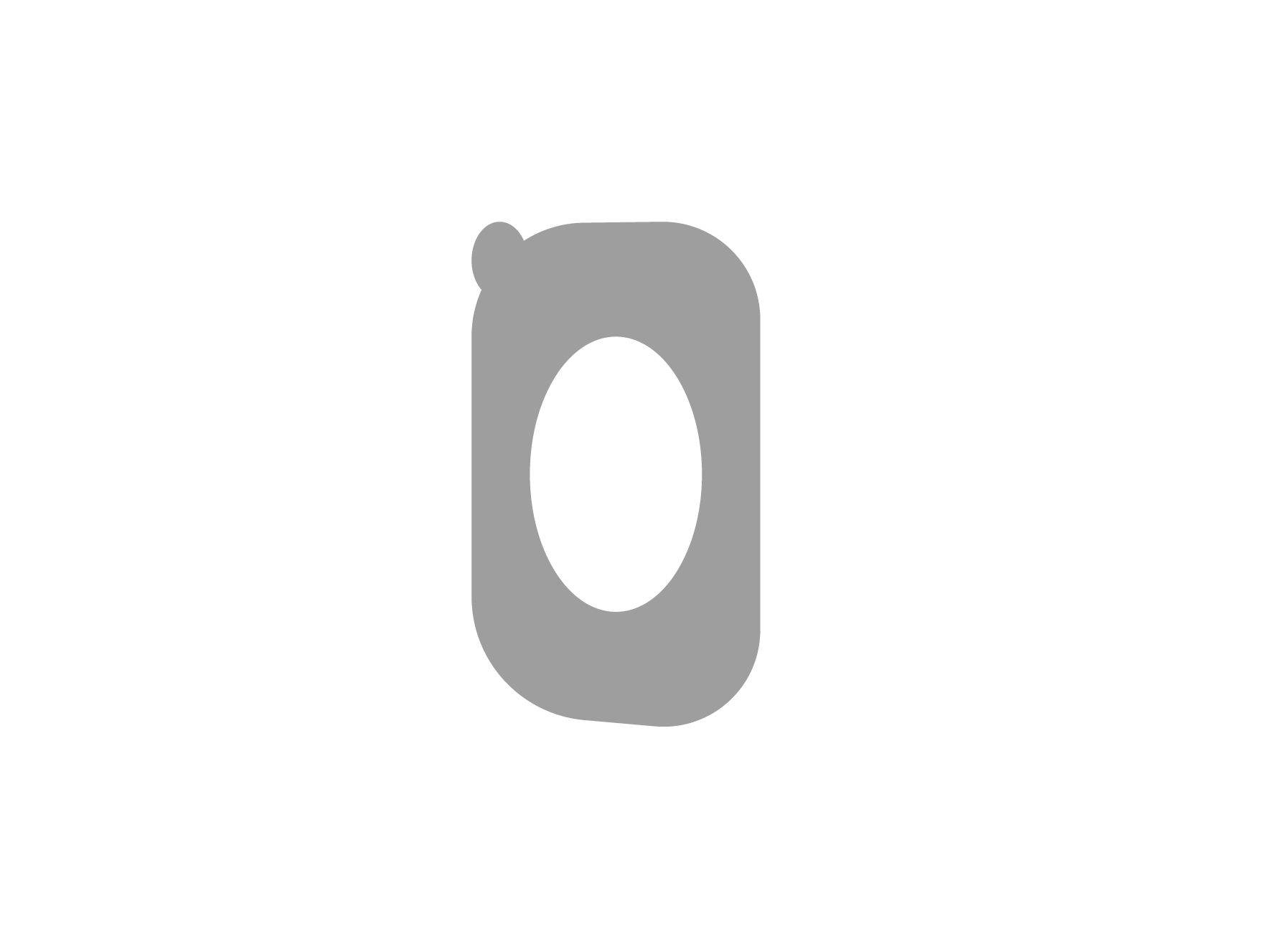

Small bracket |
|
|
|

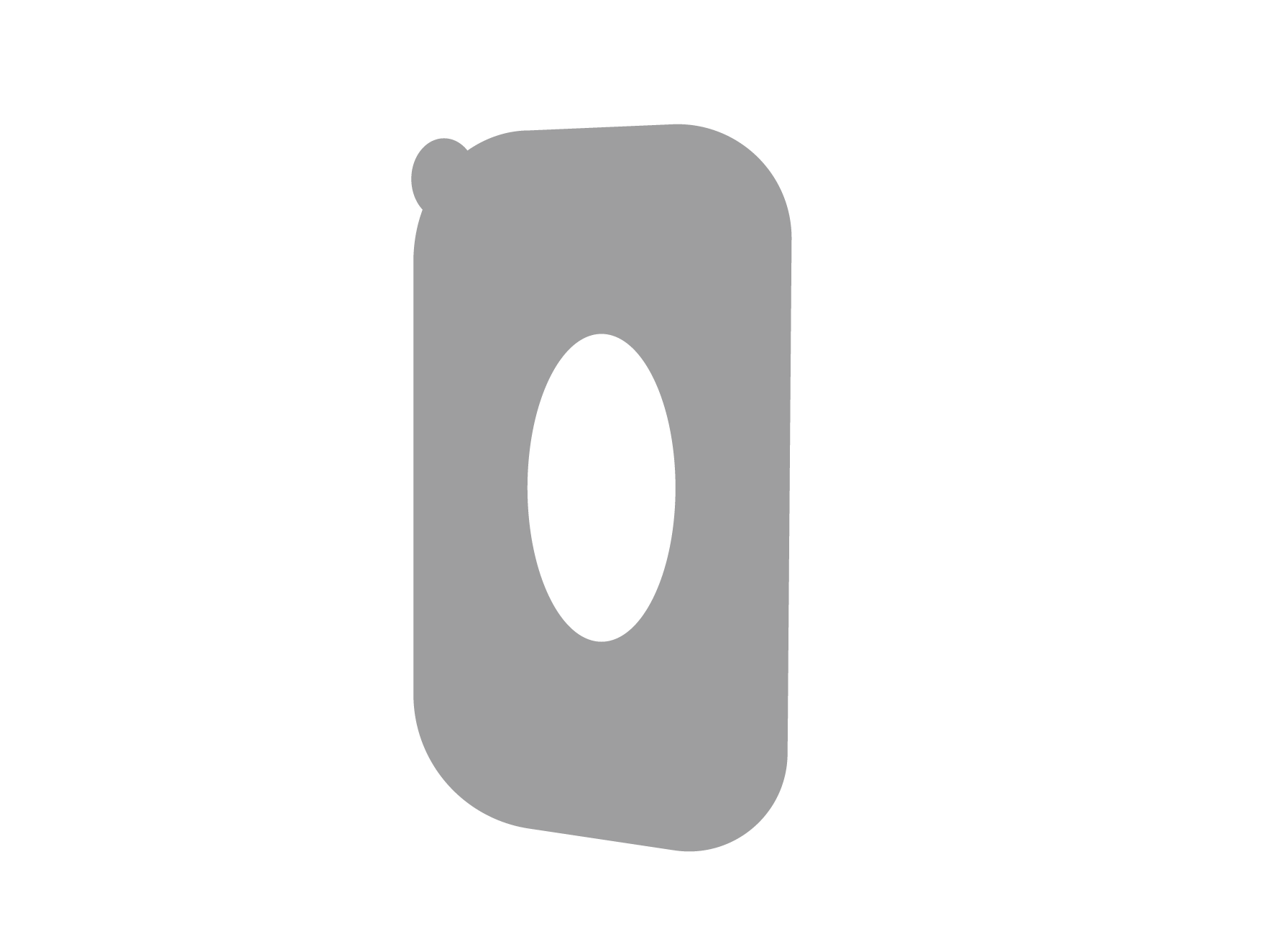

Large bracket |
|
|
|

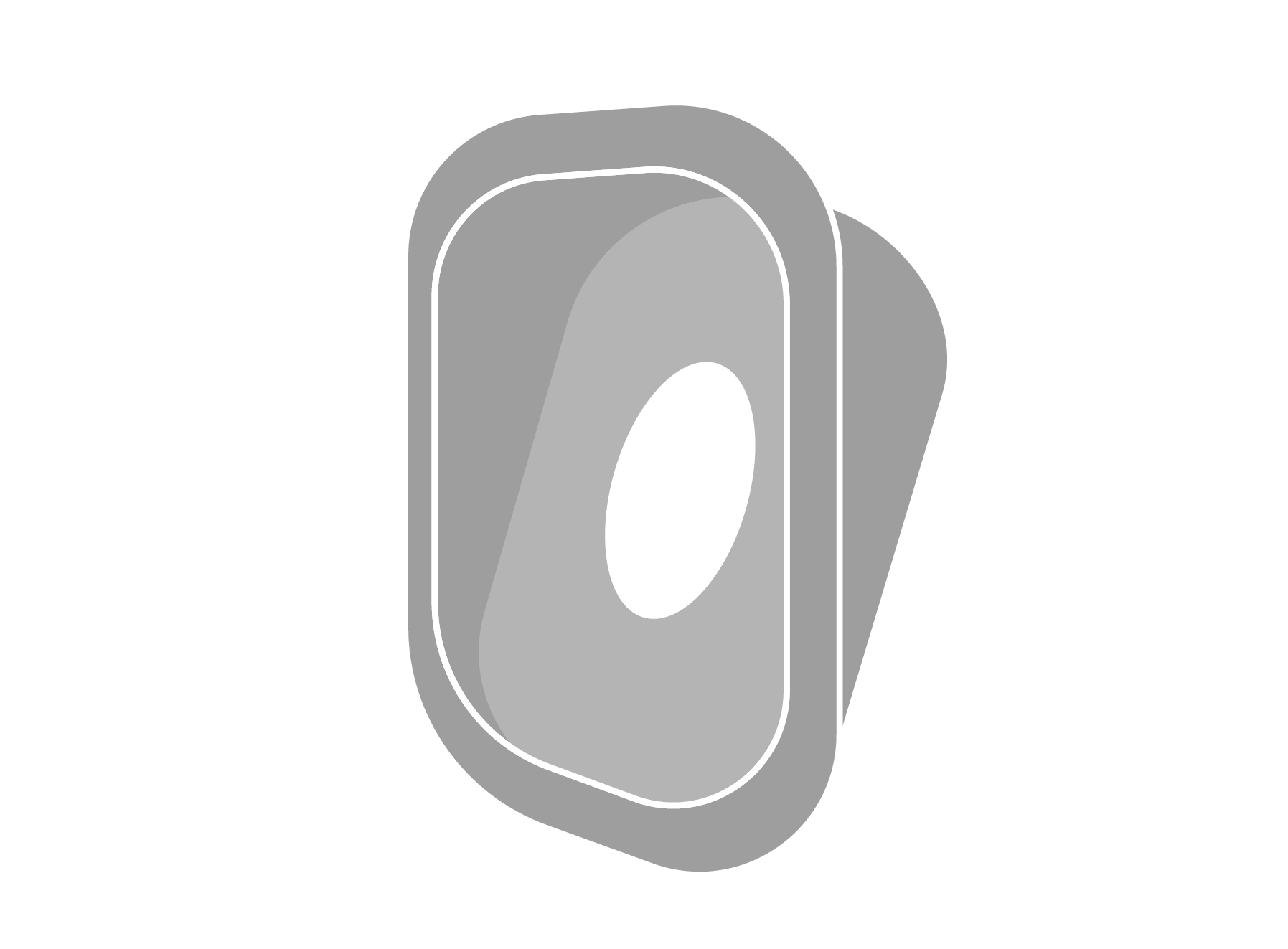

Angled bracket |
|
|
3. Attach the camera to the bracket and use the live view to confirm the installation position and viewing angle.
2. Wiring instruction
To ensure the safety of your electrical installation, it’s essential either a Miniature Circuit Breaker (MCB) or a Residual Current Operated Circuit Breaker (RCBO) with an electrical rating of 10A has been installed before the MINIR4M.
4. Remove the camera, peel off the protective film from the bracket adhesive, and attach the bracket to the glass.
5. Attach the camera to the bracket and organize the cable using the cable clips.
This device is intended for installation at a height of 2 m or lower.
Add a Device
Enter “Scan”.
Scan the QR code on the quick guide or the device
Select “Add Device”.
Power on the device
(If the device exits pairing mode)Long press the button for 5 seconds
Check LED indicator flashing status (Two short and one long)
Search for the device and start connecting
Select the “Wi-Fi” network and enter the password
Device “Added completely”
